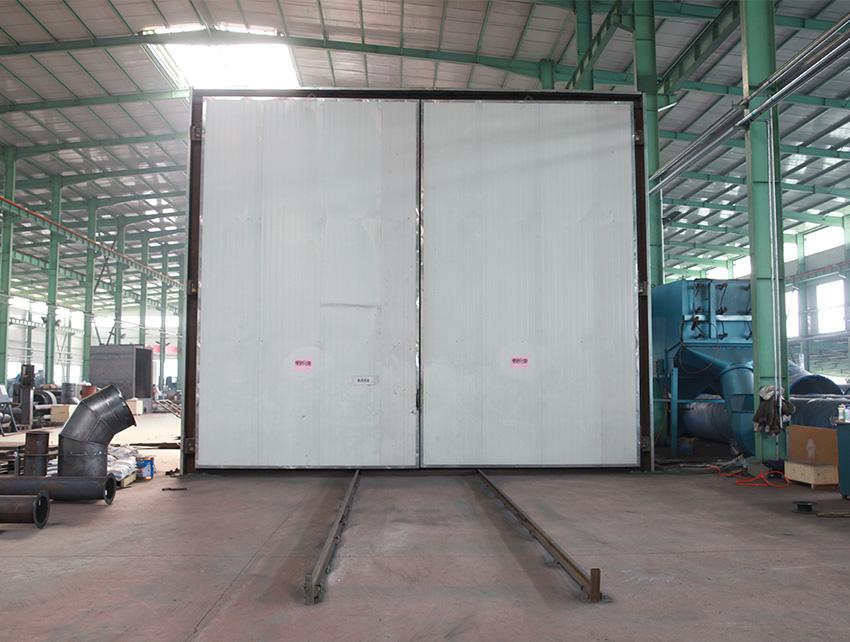

Room Structure of Sand Blasting Room

The Sand Blasting Room is welded by steel plate, and the framework is a door frame structure, and the door frames are connected by a cross connecting rod, and the door frame is installed on the ground through the mounting block and the anchor bolt. Double faced steel sheet with a thickness of 0.5~0.8 mm and a surface spray. In order to improve the service life of the house, a wear-resistant rubber sheet with a thickness of 6mm is adhered inside the house. The technical parameters of rubber sheet are: hardness 38IRHD, tensile strength 26.6 MPa, elongation 81%, tear strength 83%, abrasion index (wet) 108, temperature range 4-70 DEG C.

The lighting adopts dustproof lighting system, and the illuminance shall be no less than 650 LX within 1.5 meters from the ground. All doors leading to the sand blasting room are fitted with electrical interlocking devices that ensure that the sandblasting system stops working when any door is opened. A warning light is placed outside the door to indicate that sand blasting is under way.

To be cautious when all the Shot Blasting Equipment works.
