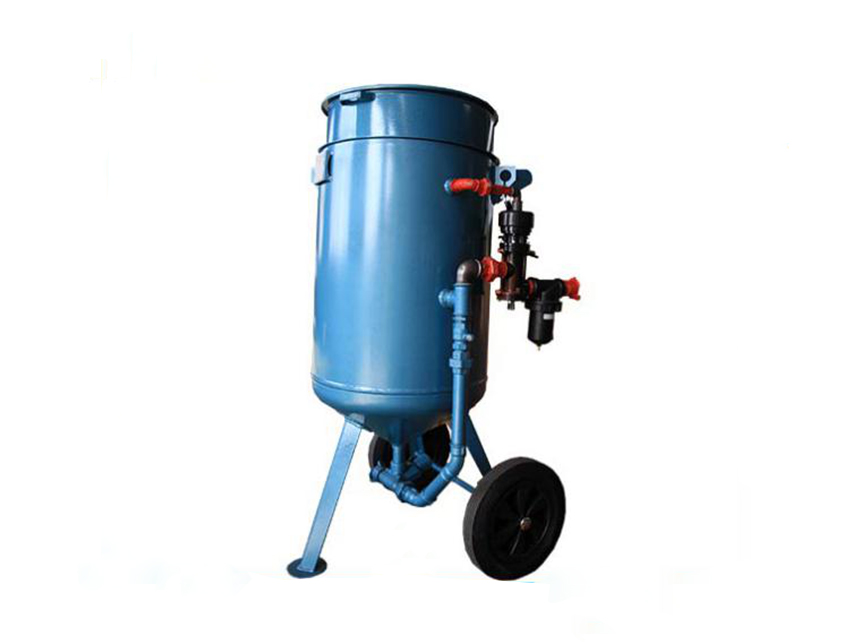

Sand Blast Machine/Sand Blast Pot

The sand blast pot we supply is movable sand blast system with rubber wheels. Widely used in all kinds of sand blast rooms, rooms, and even can be used in large shot blasting chamber as a supplement for the dead angles which a shot blaster cannot reach.

Inquire Now Next Product

Application:

a sand blast machine can be used for all kinds of metal surface. For example, large industries such as shipbuilding, aircraft, wind power equipment, large oil or gas tanks, containers, locomotives, etc. And also, small industries such as steel structures or castings with complex structures will be suitable for sand blasting.

Classification:

According to the number of guns, there are single gun type, double gun type and three gun type;

According to work efficiency, there are two types of intermittent and continuous.

Parameters as follows for your reference:

model	Outline size（mm）	Integral volume（m³）	Air source configuration（m³/min）	Air pressure（mpa）	sand blasting capacity（kg/h）	Sand blast pipe length（m）	note
KP-0.1-JX	720x800x1250	0.1	6	0.5~0.6	1800~2100	10	Single gun+intermittence
KP-0.2-JX	800x940x1460	0.2	6	0.5~0.6	1800~2100	10	Single gun+intermittence
KP-0.3-JX	620x940x1900	0.3	6	0.5~0.6	1800~2100	10	Single gun+intermittence
KP-0.5-JX	720x1060x1900	0.5	6	0.5~0.6	1800~2100	10	Single gun+intermittence
KP-0.5-JX-Ⅱ	720x1060x1900	0.5	12	0.5~0.6	3600~4200	10x2	Double guns+intermittence
KP-0.7-JX	820x1200x1900	0.7	6	0.5~0.6	1800~2100	10	Single gun+intermittence
KP-0.7-LX	820x1200x2200	0.7	6	0.5~0.6	1800~2100	10	Single gun+continuity
KP-0.7-JX-Ⅱ	820x1200x1930	0.7	12	0.5~0.6	3600~4200	10x2	Double guns+intermittence
KP-0.7-LX-Ⅱ	820x1200x2200	0.7	12	0.5~0.6	3600~4200	10x2	Double guns+continuity
KP-0.7-JX-Ⅲ	1170x1280x1780	0.7	18	0.5~0.6	5400~6300	10x3	three guns+intermittence
KP-1-JX	1120x1460x2400	1	6	0.5~0.6	1800~2100	10	Single gun+intermittence
KP-1-JX-Ⅱ	1120x1460x2400	1	12	0.5~0.6	3600~4200	10x2	Double guns+intermittence
KP-1-JX-Ⅲ	1120x1460x2400	1	18	0.5~0.6	5400~6300	10x3	three guns+intermittence
