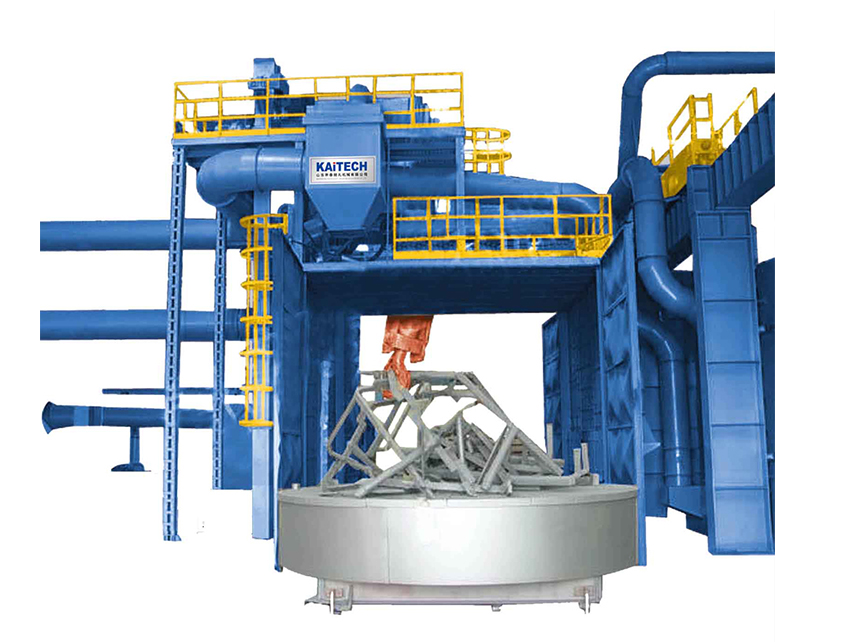

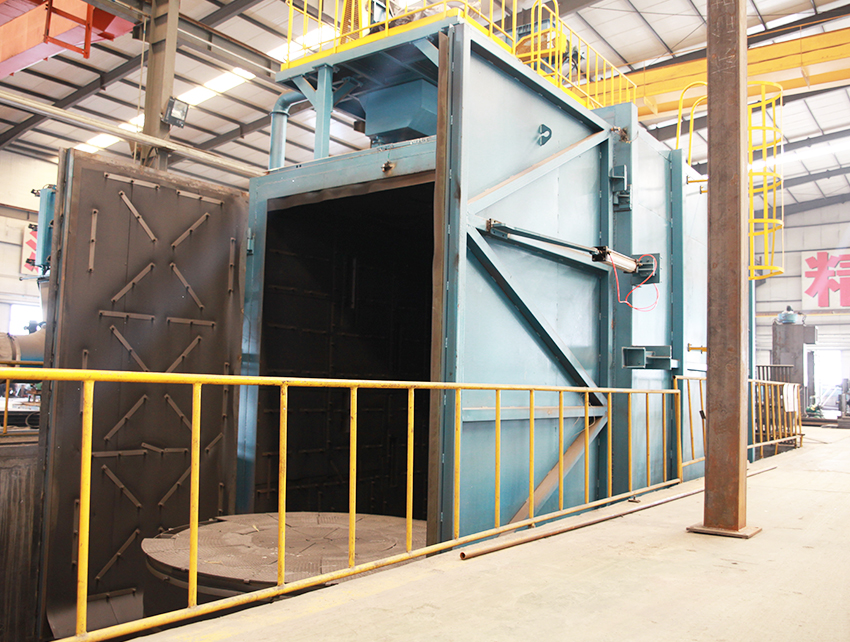

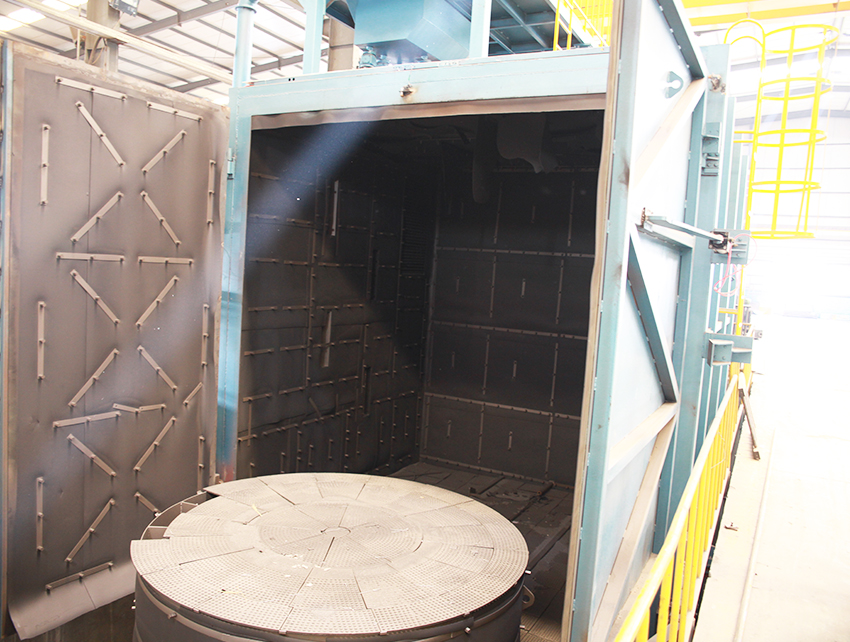

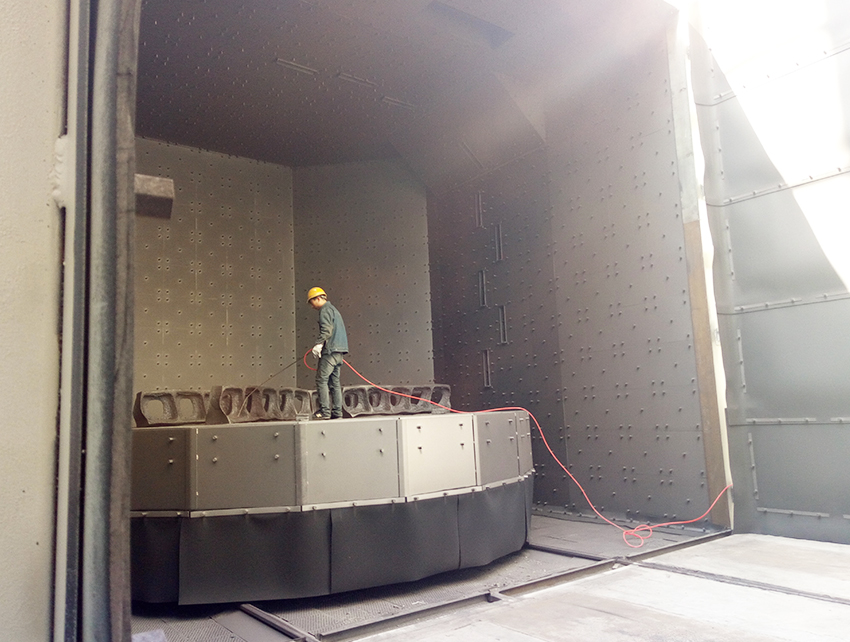

Q36/Q76 Series Trolley Type Shot Blasting Mahcine

Q36/Q76 Series Trolley Type Shot Blasting Mahcine

Product Features:

Large loading and high coverage rate of shot blasting

Large blasting and high cleaning efficiency

Shot blasting combines with shot peening,it could blast blind zone,cleaning is complete

Economic cleaning for large and heavy castings and forgings

Inquire Now Next Product

Production Application:

The equipment is suitable for marine engines, energy, power generation components,wind towers, pumps,turbines,machine tools, electrical machinery,chemical machinery,construction machinery and other industries in large, heavy and complex castings, forgings and welding parts.

Specification:Q365C、Q3610、Q3620、Q765C、Q7610、Q7620、Q7630

Parameter	Unit	Q365C	Q3610	Q3620	Q765C	Q7610	Q7620	Q7630
appearance size of workpiece	mm	2500x1300	2500x1500 x280	4000 x3000 x700	2500x1300	2500x1500 x280	4000 x3000 x700	4000 x2000
max weight of workpiece	kg	5000	10000	20000	5000	10000	20000	30000
blasting capacity	kg/min	2 x260	4 x250	4 x250	2 x260	4 x250	4 x250	4 x250
lifting capacity of elevator	t/h	40	60	75	40	60	75	60
separatorquantity	t/h	40	60	75	40	60	75	60
ventilation volume	m³／h	13200	240000	21000	13200	240000	21000	21500
power( exclude dust collector)	kw	39.2	188.45	185.25	39.2	188.45	185.25	83.2
appearance size (lengthwidthheight)	mm	9000 x4200 x9290	14900 x500 x8700	16900x6450 x10020	9000 x4200 x9290	14900 x500 x8700	16900x6450 x10020	9168x7680 x10874
