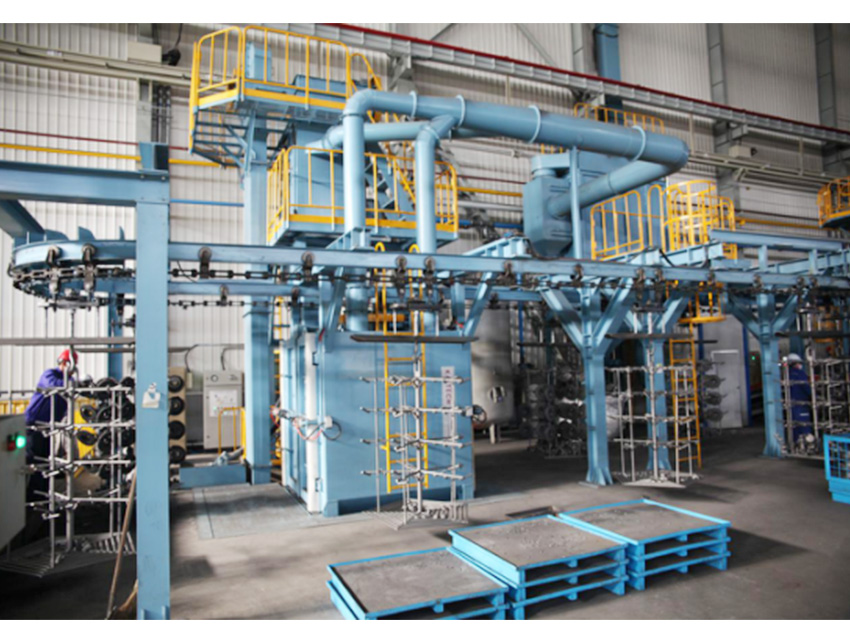

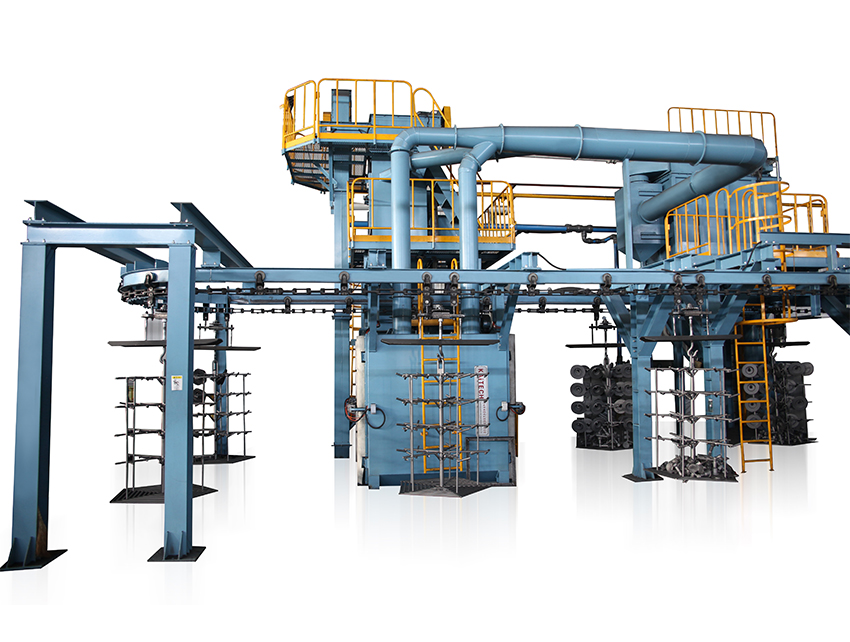

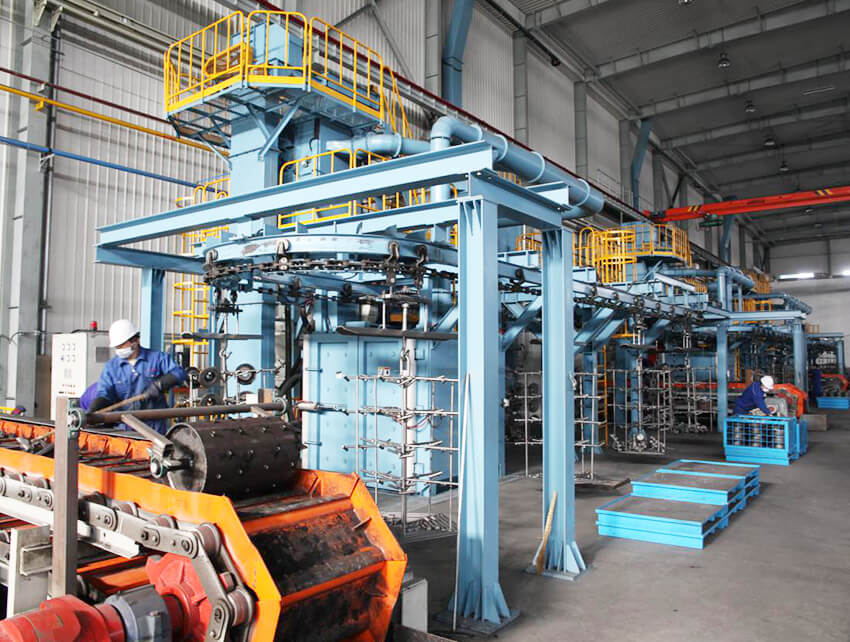

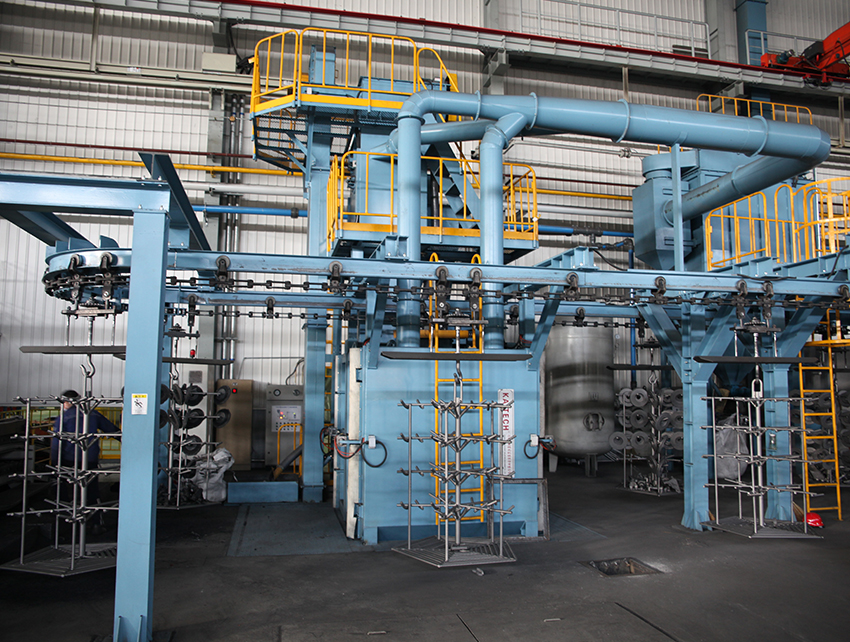

Q38,Q48 Series Catenary Type Shot Blasting Machine

Q38,Q48 Series Catenary Type Shot Blasting Machine

Static loading and unloading workpiece,automatic rapid transport, it could realize that workpiece continuous pass-through shot blasting.(Q38 series ) and multi station point workpiece rotation shot blast (Q48 series)

High production efficiency,low cost

Compact structure,easy to operate

The product model is widely.It could be used in different production efficiency requirement and workpiece size.

Modularization design can be integrated into existing production line.It will realize machinery automatic production.

Inquire Now Next Product

Production Application:

It mainly used for shot blasting and strengthen of mass production medium-small size casting,forging.

Q38,Q48 Series Catenary Type Shot Blasting Machine

Parameter	Unit	Q383/Q483	Q385/Q485	Q4810
Cleaning workpiece size	mm	Ф800 x1200	Ф1000 x1500	Ф1000 x2500
Station No.	/	/3	/3	3
blasting wheel quantity	kg	6	6	9
blasting capacity	kg/min	x250	x250	6x250
blasting wheel power	kw	6x15	6x15	6x15
the max loading weight of hanger	kg	300	500	1000
Productivity of every hook	h	30~60	30~60	40~60
cleaning room size	mm	7680x2000 x2900	7680x2000 x2900	7680x2000x3800
total ventilation volume	m³/h	17000	19000	19000
total power	kw	73.15	73.15	114.72
