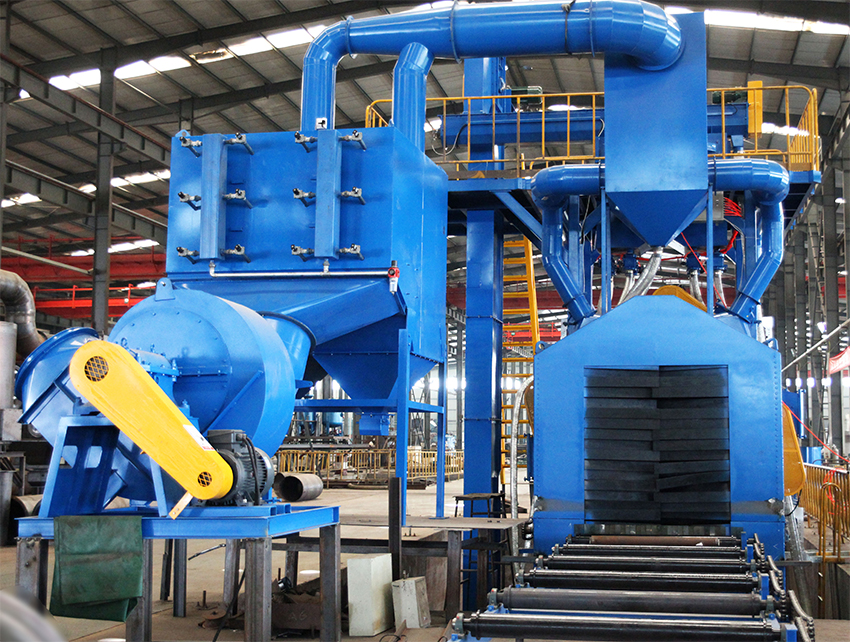

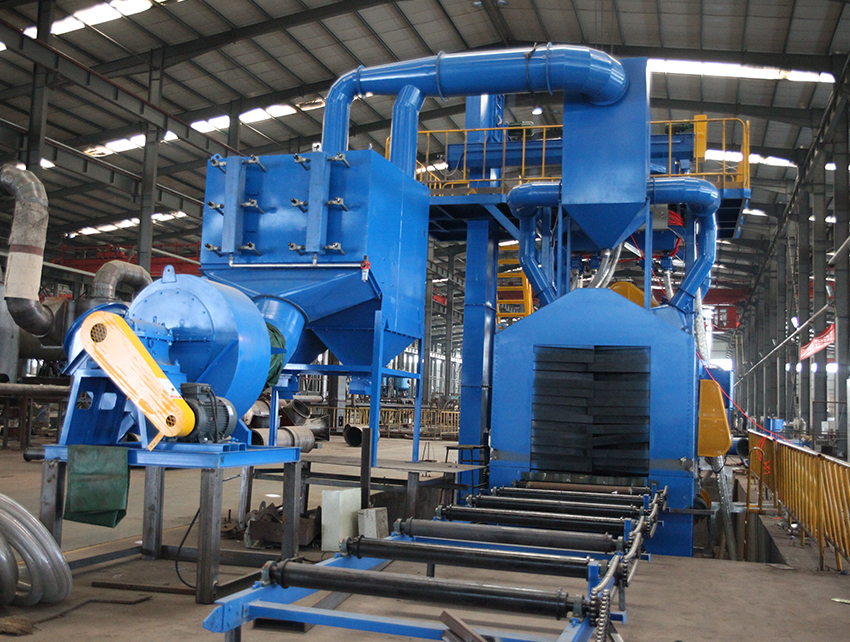

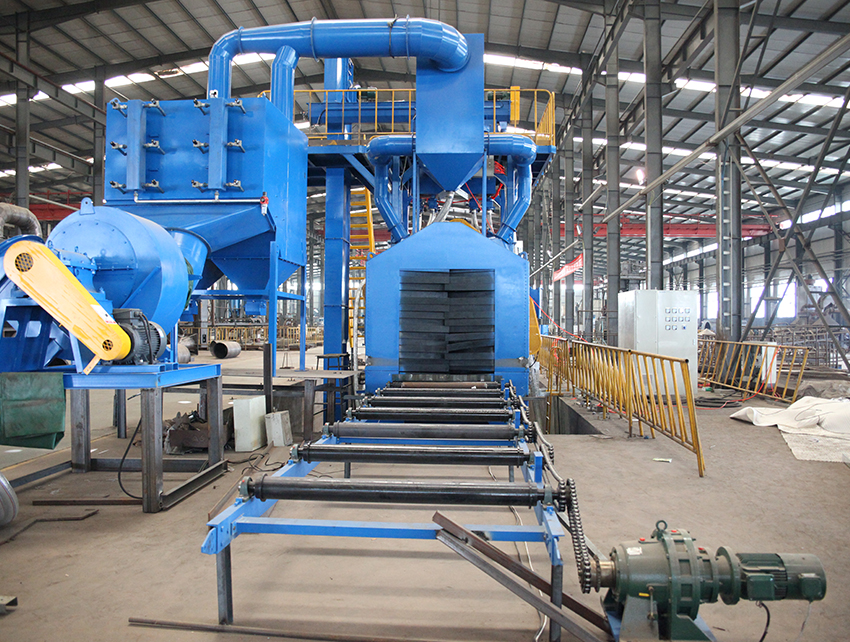

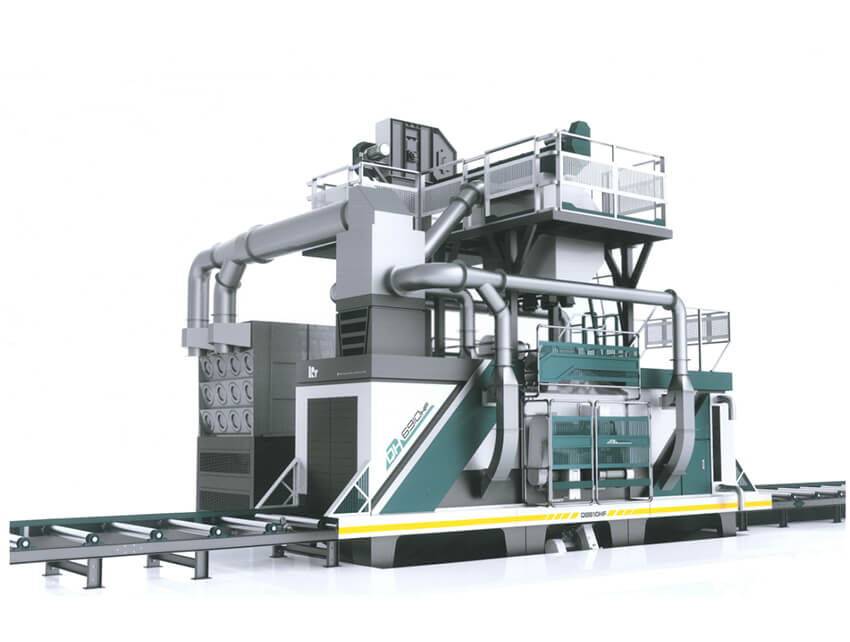

QH69 Series H Beam Special Shot Blasting Machine

QH69 Series H Beam Special Shot Blasting Machine

Used for cleaning and strengthening metal surface,it can remove oxide mill and rust for different kind of steel profiles.

Widely used,high automation, auto feeding/discharging of workpiece, meeting request for production line.

Inquire Now Next Product

Production Application:

It applies to shipping,car, motorcycle, bridge, machine industries etc. It mainly used for eliminating the stress and surface removing rust of large steel strucutre,H beam and so on.

Specification: QH698、QH6912、QH6915、QH6918

	Unit	QH698	QH6912	QH6915	QH6918
effective cleaning width	mm	800	1200	1500	1800
Inlet size of chamber	mm	1000 x1500	1400 x1700	1700 x1700	2000 x1800
length of workpiece	mm	1200-12000	1200-13000	1500-13000	2000-13000
size of workpiece	mm	800 x1200	1200 x1500	1500 x1500	1800 x1600
speed of conveyor roller (stepless speed variation)	m/min	0.5-4	0.5-4	0.5-4	0.5-4
blasting qty	kg/min	8 x125	8 x180	8 x180	8 x250
shots for first time loading	kg	4000	5000	5000	6000
ventilation	m³/h	20000	220000	25000	25000
total power( exclude dust removing)	kw	90	130	180	180
