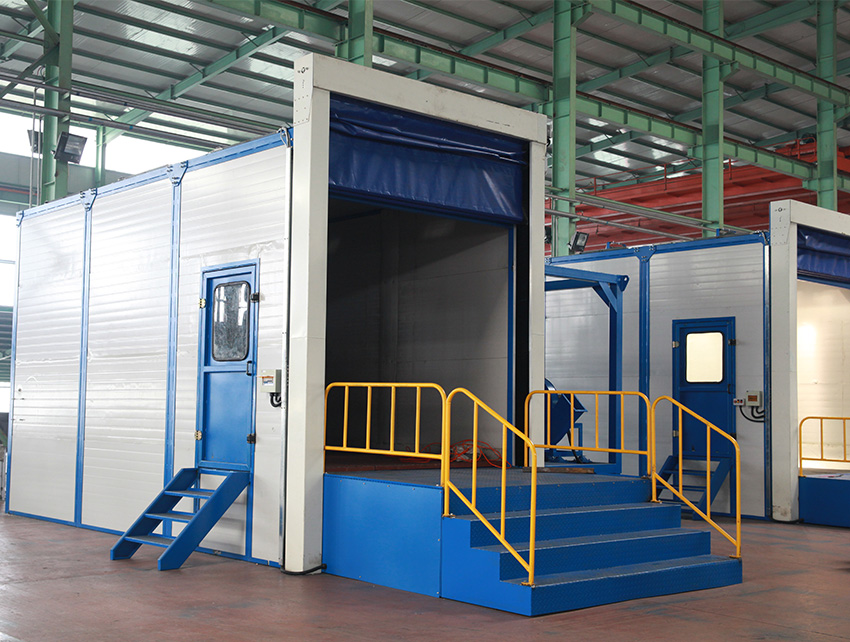

Sand Blasting Room

Adopting compressed air as driving force and abrasives as media to blast the metal surface, a complete sand blast room should include room body and structure, recovery system, sand blast machine, dust removal system, lightening system, protections suits for workers, and compressed air (normally, the user will have compressed air at their site. ), etc.

Inquire Now Next Product

Normally, a sand blast room is non-standard system which need to be designed independently according to the customer’s conditions and requirements. Such as workpiece details, whether you have a room, preferred recovery method, degree of automation, etc. Kaitai will provide one-stop blasting services for your most picky requirement.

Parameters for reference only

No.	Model	Size of room	Efficient size of working	Spray gun quantity
1	XDL-0606-M1	6000x6000x5000mm	3000×3000×2500mm	2
2	XDL-0606-M2	6000x6000x6000mm	3000×3000×3500mm	2
3	XDL-0806-M1	8000x6000x5000mm	5000×3000×2500mm	2
4	XDL-0806-M2	8000×6000×6000mm	5000×3000×3500mm	2
5	XDL-1006-M2	10000×6000×6000mm	7000×3000×3500mm	2
6	XDL-1506-M2	15000×6000×6000mm	12000×3000×3500mm	2
7	XDL-1508-M2	15000×8000×6000mm	12000×5000×3500mm	2
8	XDL-1808-M2	18000×8000×6000mm	15000×5000×3500mm	4
9	XDL-0806-M3	18000×10000×8000mm	15000×7000×5500mm	4
